- Compact wheelbase
- Robust design
- Ergonomic cab
- Easily serviceable

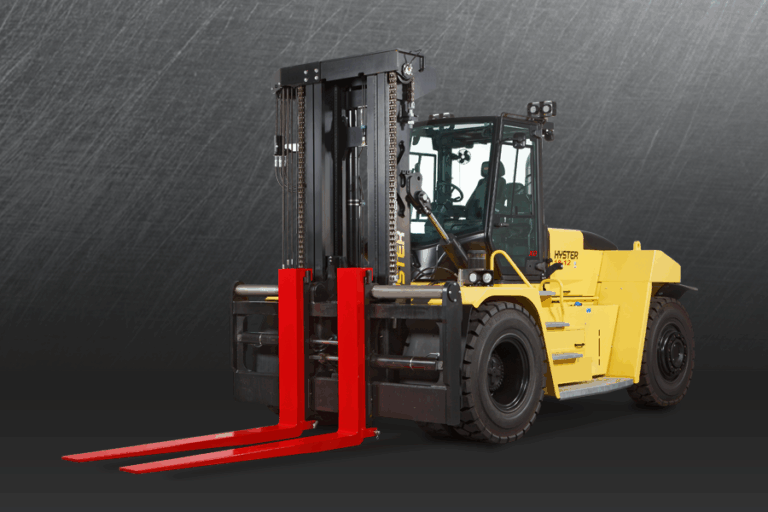

The ultra compact short wheelbase models are designed for applications where operating space is restricted. The compact ‘S’ (short) models feature a wheelbase of just 3.50m.
With fast travel and lift speeds, the high-performance power train features engine and transmission protection systems providing maximum reliability and low total cost of ownership.
|Model Name||Load Capacity||Load Centre||Lift Height||Platform Height||Turning Radius||AST (wide/long)||Battery Capacity||Overall Width||Weight||Engine||Transmission|
|H20XD9||20000kg||900mm||7000mm||5250mm||2923mm||28858kg||MTU 7.7L Diesel||ZF - 5WG211|
|H20XDS9||20000kg||900mm||7000mm||4934mm||2923mm||30030kg||MTU 7.7L Diesel||ZF - 5WG211|
|H18XDS9||18000kg||900mm||7000mm||4934mm||2923mm||27669kg||MTU 7.7L Diesel||ZF - 5WG211|
|H18XDS||18000kg||900mm||7000mm||5250mm||2923mm||27052kg||MTU 7.7L Diesel||ZF - 5WG211|
