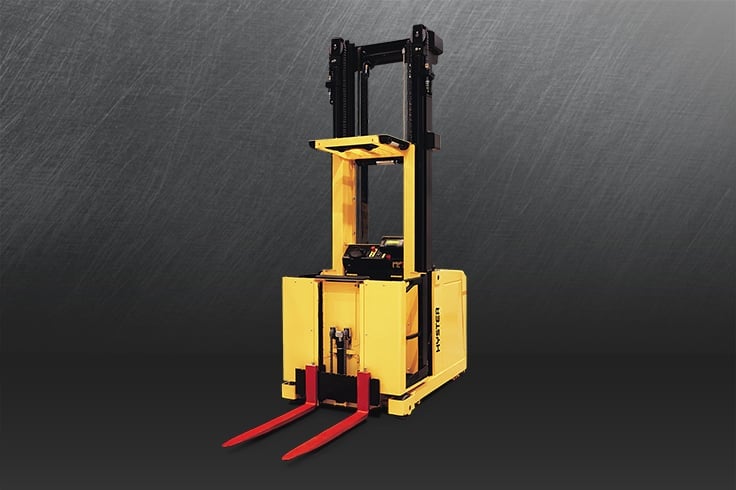

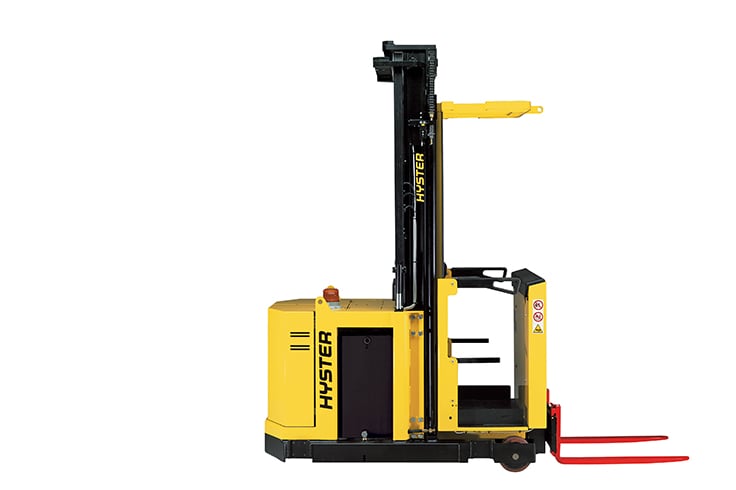

K1.0L / M / H
- Compact chassis and robust mast
- Low cost of ownership
- Spacious operator compartment
- Increased productivity
- Reduced downtime
Strong, welded compact chassis structure enhances manoeuvrability and allows reliable load handling even in high racking.
The picker’s robust mast construction with high torsional strength promotes increased stability, leading to greater operator confidence and safer load handling.
A slack chain detection device, mounted on the mast, prevents further lowering if an obstacle is encountered. This promotes safe operation and minimizes truck damage.
|Model Name||Load Capacity||Load Centre||Lift Height||Platform Height||Turning Radius||AST (wide/long)||Battery Capacity||Overall Width||Weight||Engine||Transmission|
|K1.0L AC 48 WP||1000kg||4627mm||4807mm||1196mm||24V / 560Ah(V/Ah)||2865kg|
|K1.0L AC 48 SL||1000kg||4627mm||4807mm||1400 / 1150mm||24V / 560Ah(V/Ah)||2665kg|
|K1.0L AC 12 SL||1000kg||1010mm||1190mm||1400 / 1000mm||24V / 560Ah(V/Ah)||1700kg|
|K1.0L AC 12||1000kg||1010mm||1190mm||1400 / 1000mm||24V / 560Ah(V/Ah)||1600kg|
|K1.0H||1000kg||5170mm||5420mm||1400 / 1300mm||48V / 420Ah(V/Ah)||3255kg|
|K1.0L AC 17 WP||1000kg||1510mm||1690mm||1196mm||24V / 560Ah(V/Ah)||2000kg|
|K1.0L AC 0.7 FC||1000kg||690mm||- mm||1400 / 1000mm||24V / 560Ah(V/Ah)||1550kg|
|K1.0L AC 15 FC||1000kg||1410mm||- mm||1400 / 1000mm||24V / 560Ah(V/Ah)||1750kg|
|K1.0M||1000kg||4670mm||4920mm||1400 / 1200mm||48V / 310Ah(V/Ah)||2890kg|
|K1.0L AC 17 SL||1000kg||1510mm||1690mm||1400 / 1000mm||24V / 560Ah(V/Ah)||1800kg|
