- Superior serviceability
- Ergonomic design
- Low energy consumption
- Performance modes

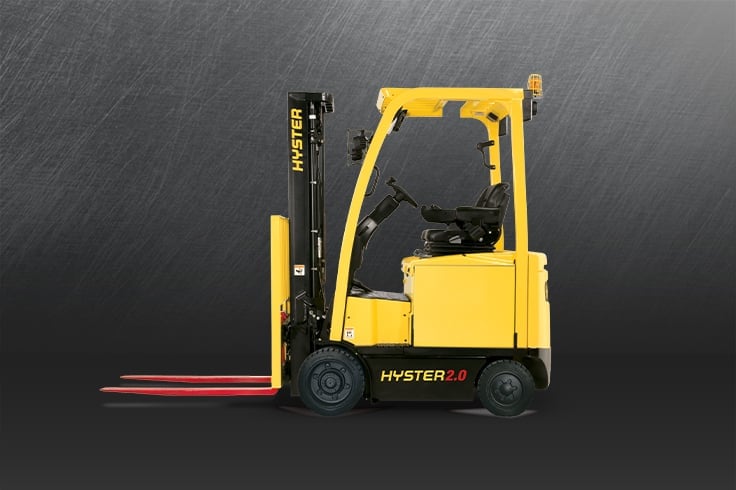

The E1.6-2.0XN series utilises CANbus communications to simplify wiring and improve serviceability.
State-of-the-art on-board diagnostics reduce repair time and minimise expensive part-swapping.
A two-piece floor plate and side plates can be easily removed for unrestricted service access. The lift-out floor plate requires no tools for quick and easy daily operator checks.
Easy battery access is provided via the gas spring-assisted hood and quick release handle. The rear counterweight service cover is easily removed by loosening two screws.
|Model Name||Load Capacity||Load Centre||Lift Height||Platform Height||Turning Radius||AST (wide/long)||Battery Capacity||Overall Width||Weight||Engine||Transmission|
|E1.8XN||1800kg||500mm||5500mm||1657mm||3226 / 3417mm||48V / 690Ah(V/Ah)||3532kg|
|E2.0XN||2000kg||500mm||5500mm||1692mm||3216 / 3452mm||48V / 690Ah(V/Ah)||3719kg|
|E1.6XN||1600kg||500mm||5500mm||1644mm||3216 / 3404mm||48V / 690Ah(V/Ah)||3414kg|
